Servo System IBM Plastic Cosmetic Bottles 5-2000ml Plastic Bottle Making Price Injection Blow Molding Machine

ブランド名:	ZI QIANG
モデル番号:	ZQ 40
MOQ:	1
価格:	30000 USD
支払条件:	T/T

製品の説明

起源の場所:

マーケティングタイプ:

スクリュー・ダイマター:

1500kgから5000kgまでの範囲

輸送パッケージ:

フィルム包装

射出型ストローク:

200mm

江蘇骨jiagang

注入ブロー成形機

3.8トン

動作電力:

52-70％

モーター出力:

ブロー型ストローク:

120mm

機械の寸法:

モデルによって異なります。 3m×1.5m×2m

圧縮空気容量:

0.7m³/min

冷却システム:

温度制御付き水冷

供給の能力:

15セット/月

ハイライト:

IBM plastic bottle molding machine

cosmetic bottle injection blow machine

servo system blow molding equipment

製品の説明

Company Profile

Zhangjiagang Ziqiang Machinery Co., Ltd. specializes in the research, development, production, sales, and trade of automatic one-step injection blow molding machines and supporting injection blow molds. Located in Zhangjiagang City, a national health and civilized city, the company benefits from an advantageous geographical location and convenient transportation.

With an excellent R&D team comprising experienced engineering and technical personnel in injection blow molding machinery and molds, we provide comprehensive "pre-sale", "sale", and "after-sale" services.

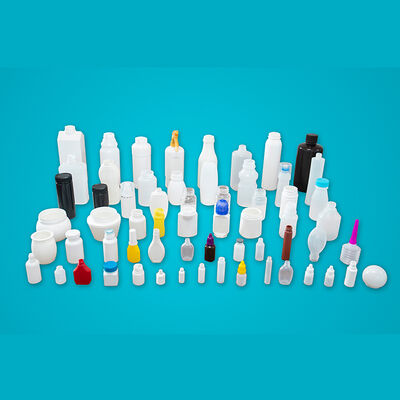

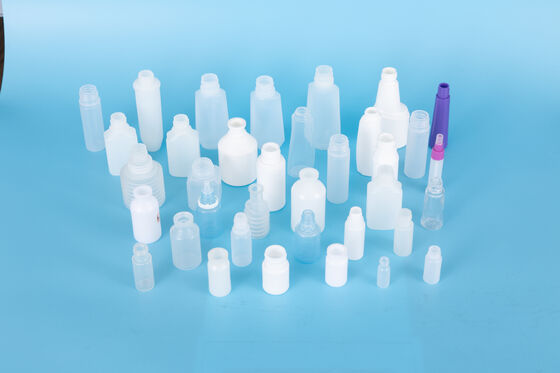

Our product applications span pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and various plastic packaging sectors. We can produce 1ml-1000ml plastic products using materials including HDPE, LDPE, PP, PS (lactic acid bacteria), high transparent PS, ABS, environmental corn material, EVA, and PCTG.

Adhering to the enterprise development tenet of "self-reliance, integrity, pragmatism, innovation and responsibility," we deliver one-stop "turnkey" projects for high-end injection-blowing products with superior quality.

Product Overview

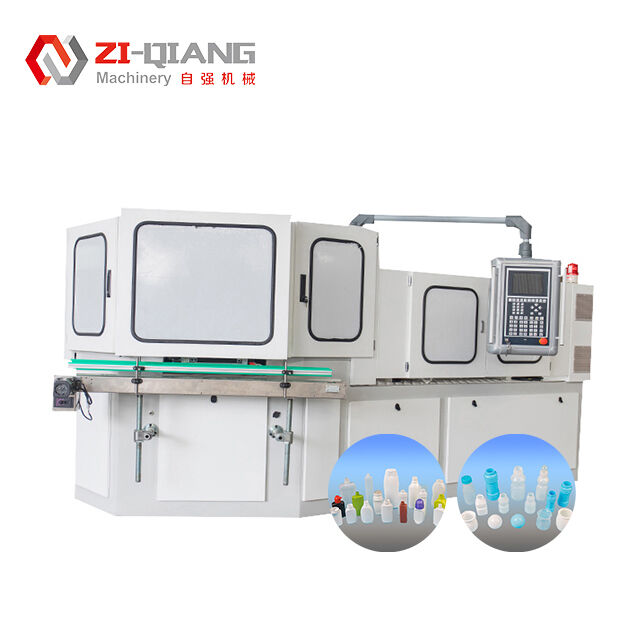

IBM-ZQ40 Servo System Injection Blow Molding Machine

This servo system machine is dedicated to producing high-quality plastic bottles for beverages, cosmetics, and other applications with capacities ranging from 5-2000ml.

Key Features

Full European-style structure with 20%-30% larger clamping force than industry counterparts
Standard servo rotation system with simple structure and convenient operation
Unique pressurized clamping structure reduces energy consumption by 10%-20%
Over 20 years of rich experience in injection molding technology

Technical Specifications

ITEM	UNIT	ZQ40
Injection System
Screw Diameter	mm	40/45
Screw L/D	%	22:1
Injection weight	g	190/260
Heating power	KW	7.5
Number of barrel zone		3+N
Injection stroke	mm	120
Clamping System
Clamping force of injection	KN	400
Opening stroke for injection	mm	165
Clamping force of blowing	KN	60
Opening stroke for blowing	mm	140
Lifting height of rotary table	mm	70
Mould
Max.Platen size(LxW)	mm	480x340
Mold thickness	mm	180
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1500
Stripping stroke	mm	220
Hydraulic System
Hydraulic Pressure	Map	14
Motor power	KW	11
Dry cycle	S	3.5
Total Power	KW	20
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	3.5
Cooling water pressure	MPa	0.3-0.4
Dimension(LxWxH)	M	3.5x1.3x1.7
Net weight	Ton	3.8

Industry Applications

Our injection blow molding machines serve multiple industries including pharmaceuticals, cosmetics, and food packaging, producing high-quality plastic containers for various applications.

Operating Principle

Production Process Stages

Stock Preparation/Injection Device
Hot Runner

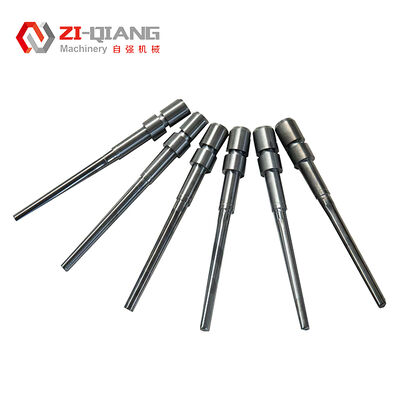

Core Rod
Bottle Preform

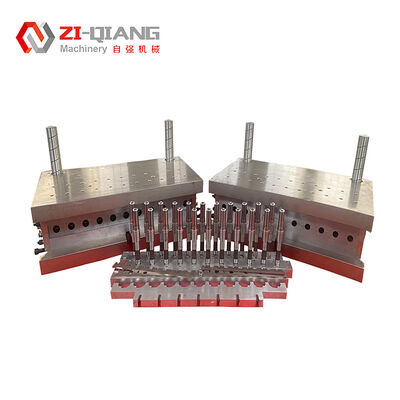

Injection Mold
Injection Station
Blow Station
Blow Mold
Stripping Station

Packing & Delivery

Our machines are carefully packed to ensure safe transportation and timely delivery to your facility.

After Sales Service

Guarantee: Electric parts: One year, mechanical parts: One year
Guarantee period starts from machine startup and testing at buyer's plant
Installation support with online guidance; on-site assistance available with buyer cooperation for requirements
After guarantee term, accessories provided at low cost; non-easy destroy parts replaced free for normal wear

Certifications

Frequently Asked Questions

Q: Can we visit your factory?

A: Yes. We are located in Zhangjiagang city near Shanghai. For overseas customers, we can arrange pickup from Shanghai Pudong International Airport or Hongqiao International Airport. We also provide online video visits.

Q: How can we get the exact price of plastic machine?

A: Contact us with your product size, shape, annual quantity, and photos if available. We will recommend suitable machine models with detailed quotation.

Q: Do you provide any spare parts with machine?

A: Yes, we include all necessary spare parts before shipment. Contact us for the complete packing list.

Q: How about your after-sale service?

A: We provide one-stop "turnkey" solutions with 24-hour debugging and after-sales support.

Q: What is the lead time?

A: Customized machines take approximately 45 days after deposit. Stock machines are available for fast shipment. Actual production cycles vary based on customization requirements.

Q: What is the warranty period for your machine?

A: One year warranty for components with ongoing technical support.

Q: Do you provide custom machines?

A: Most of our machines are customized. We design according to customer products to ensure efficiency and stable performance.

Q: How can we install the machine when it arrives?

A: We provide installation guidance and can send experienced engineers for on-site installation and debugging assistance.
